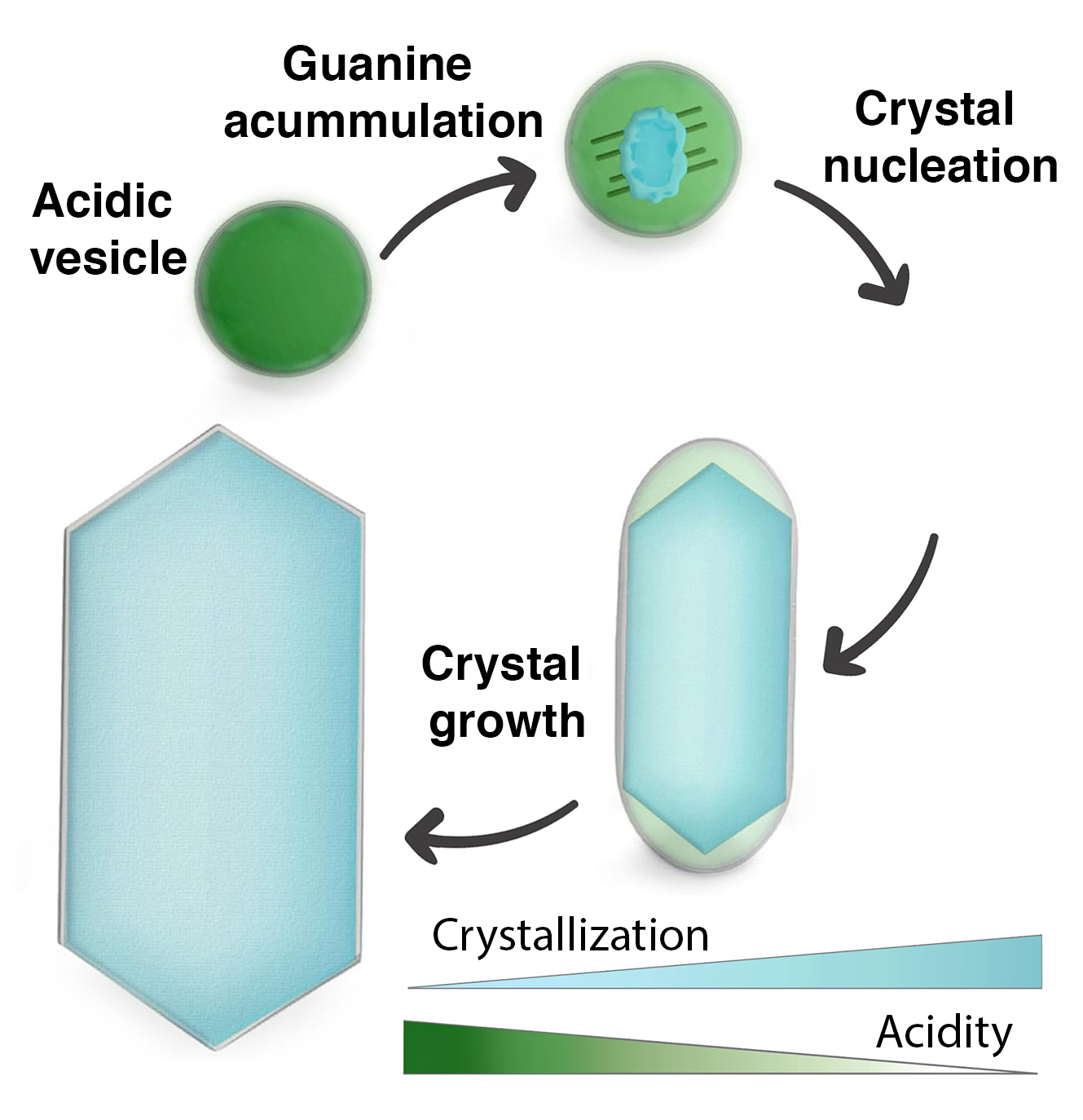

Many animals produce vivid colors by reflecting and amplifying light with stacked guanine crystals within membrane-bound organelles called iridosomes. While the presence of guanine crystals in iridosomes is well documented, the mechanisms facilitating the accumulation of water-insoluble guanine and driving its crystallization remain unclear. Here we used cryo-electron microscopy, live-cell pH imaging, pharmacological perturbations and spectroscopy to study iridosome maturation in zebrafish. Cryo-electron and synchrotron-based soft X-ray microscopies revealed that amorphous guanine initially accumulates in early-stage iridosomes in its protonated state. Live-cell imaging with a pH sensor demonstrated that early iridosomes are acidic, with pH gradually neutralizing during development. Inhibiting V-ATPase disrupted this acidification and significantly reduced crystal formation, indicating its role in pH regulation. Our findings reveal insights into the molecular mechanisms facilitating guanine formation within iridosomes, emphasizing the pivotal role of pH alternations in the precise formation of biogenic crystals.

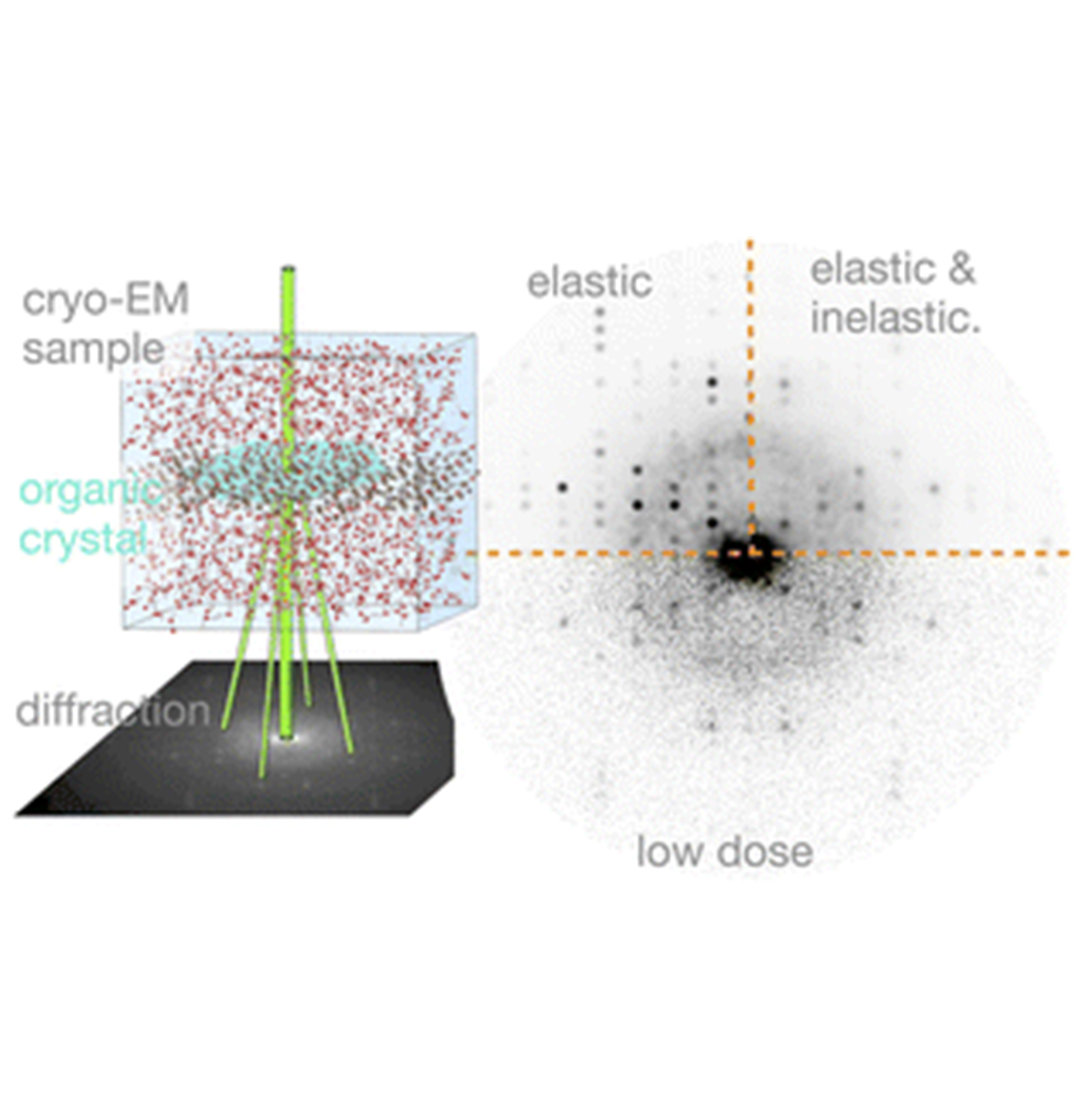

Multimodal scanning transmission electron microscopy on vitrified frozen-hydrated specimens promises exceptional spatial resolution into the molecular mechanisms underlying the formation of organic crystals in both health and disease. Detection of crystalline volumes is essential for tracking and mapping nucleation and growth. We provide an analytical description of the low-dose detection limit in diffraction for a thin crystal embedded in a thick matrix, focusing on organic crystals and embedding matrices of low-Z elements such as vitrified ice. Numerical calculations refine our description by accounting for the effects of multiple scattering. Often underestimated, wide-angle tails associated with inelastic scattering play a crucial role for the detection of crystalline reflections in a thick ice matrix, common for cryo-electron microscopy. We show that guanine crystals as thin as a few nanometers can be detected with a fluence of just a few thousand electrons if the ice thickness is below one mean free path for inelastic scattering. The required fluence increases non-linearly with the embedding ice thickness, with a pronounced top-bottom effect regarding the location of the crystal in the sample. Energy-filtered recording significantly reduces the fluence needed for thicker samples. The low-dose simulations implemented here validate the analytical description while acknowledging its limitations due to abstraction from multiple scattering and beam spreading.

Pigmentation plays a vital role in the survival of organisms, supporting functions such as camouflage, communication, and mate attraction. In vertebrates, these functions are mediated by specialized pigment cells known as chromatophores of which, uric acid crystalforming leucophores remain the least understood, with little known about their molecular mechanisms. A key question in pigment cell biology is whether different crystal chemistries require distinct molecular pathways, or whether similar cellular processes drive the formation of diverse crystals. This study was designed to unravel the uncharacterized process of uric acid crystallization in leucophores and compare them to guanine crystal formation in iridophores and pterin formation in xanthophores. The results of our transcriptomic, ultrastructural, and metabolomic analyses, demonstrate that leucophores share molecular pathways with iridophores, particularly those connected to organelle organization and purine metabolism, but express discrete genes involved in uric acid biosynthesis and storage. Additionally, leucophores share intracellular trafficking and pterin biosynthesis genes with xanthophores, suggesting universally conserved processes. Ultrastructural studies reveal star-like fibrous structures in leucosomes, which likely serve as scaffolds for unique one-dimensional uric acid assemblies that radiate from the core and act as efficient light scatterers. These findings provide insights into leucophore cell biology and the specialized mechanisms driving molecular crystalline assembly, and reveal that while some cellular processes are conserved, the specific chemistry of each crystal type drives the evolution of distinct molecular pathways.

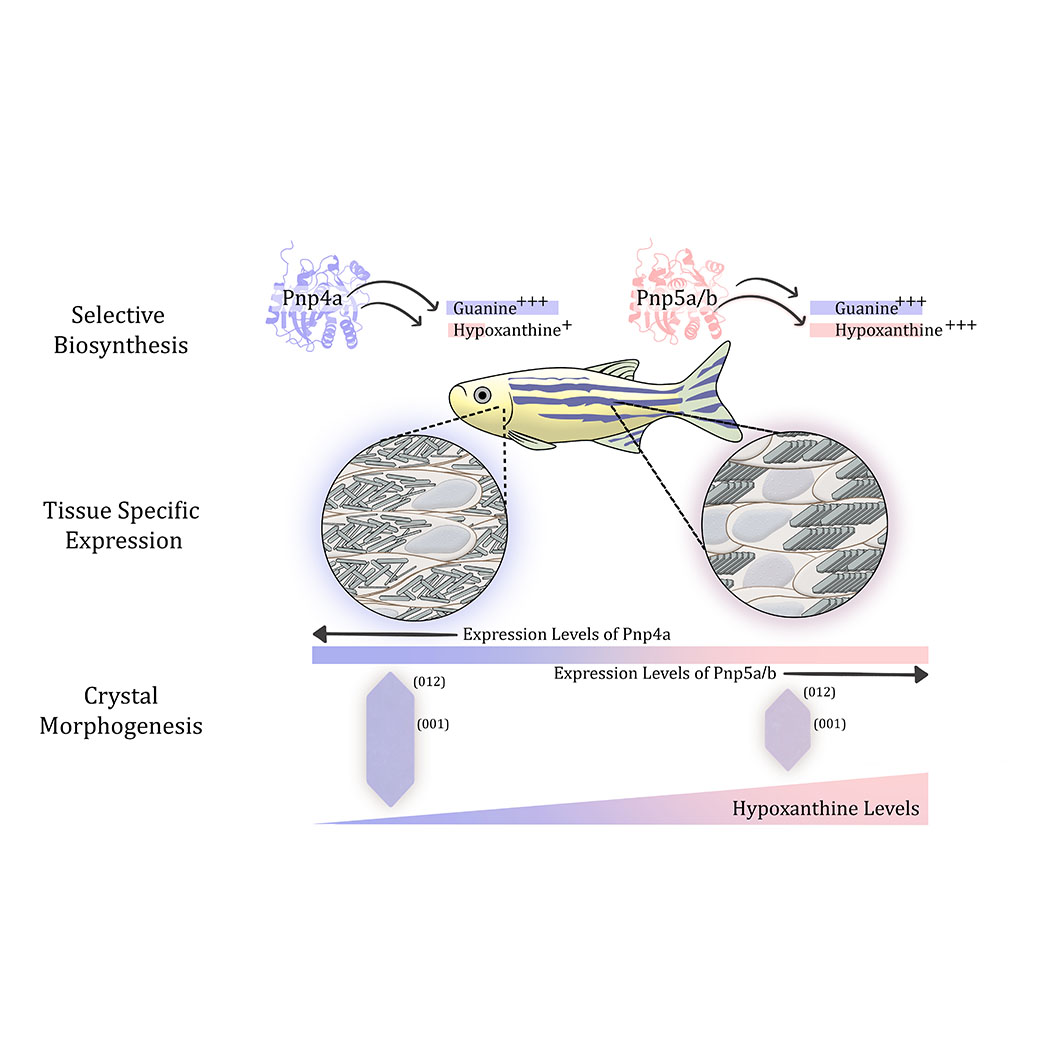

Organisms evolve mechanisms that regulate the properties of biogenic crystals to support a wide range of functions, from vision and camouflage to communication and thermal regulation. Yet, the mechanism underlying the formation of diverse intracellular crystals remains enigmatic. Here we unravel the biochemical control over crystal morphogenesis in zebrafish iridophores. We show that the chemical composition of the crystals determines their shape, particularly through the ratio between the nucleobases guanine and hypoxanthine. We reveal that these variations in composition are genetically controlled through tissue-specific expression of specialized paralogs, which exhibit remarkable substrate selectivity. This orchestrated combination grants the organism with the capacity to generate a broad spectrum of crystal morphologies. Overall, our findings suggest a mechanism for the morphological and functional diversity of biogenic crystals and may, thus, inspire the development of genetically designed biomaterials and medical therapeutics. (Figure presented.)

Many animals exhibit remarkable colors that are produced by the constructive interference of light reflected from arrays of intracellular guanine crystals. These animals can fine-tune their crystal-based structural colors to communicate with each other, regulate body temperature, and create camouflage. While it is known that these changes in color are caused by changes in the angle of the crystal arrays relative to incident light, the cellular machinery that drives color change is not understood. Here, using a combination of 3D focused ion beam scanning electron microscopy (FIB-SEM), micro-focused X-ray diffraction, superresolution fluorescence light microscopy, and pharmacological perturbations, we characterized the dynamics and 3D cellular reorganization of crystal arrays within zebrafish iridophores during norepinephrine (NE)-induced color change. We found that color change results from a coordinated 20° tilting of the intracellular crystals, which alters both crystal packing and the angle at which impinging light hits the crystals. Importantly, addition of the dynein inhibitor dynapyrazole-a completely blocked this NE-induced red shift by hindering crystal dynamics upon NE addition. FIB-SEM and microtubule organizing center (MTOC) mapping showed that microtubules arise from two MTOCs located near the poles of the iridophore and run parallel to, and in between, individual crystals. This suggests that dynein drives crystal angle change in response to NE by binding to the limiting membrane surrounding individual crystals and walking toward microtubule minus ends. Finally, we found that intracellular cAMP regulates the color change process. Together, our results provide mechanistic insight into the cellular machinery that drives structural color change.

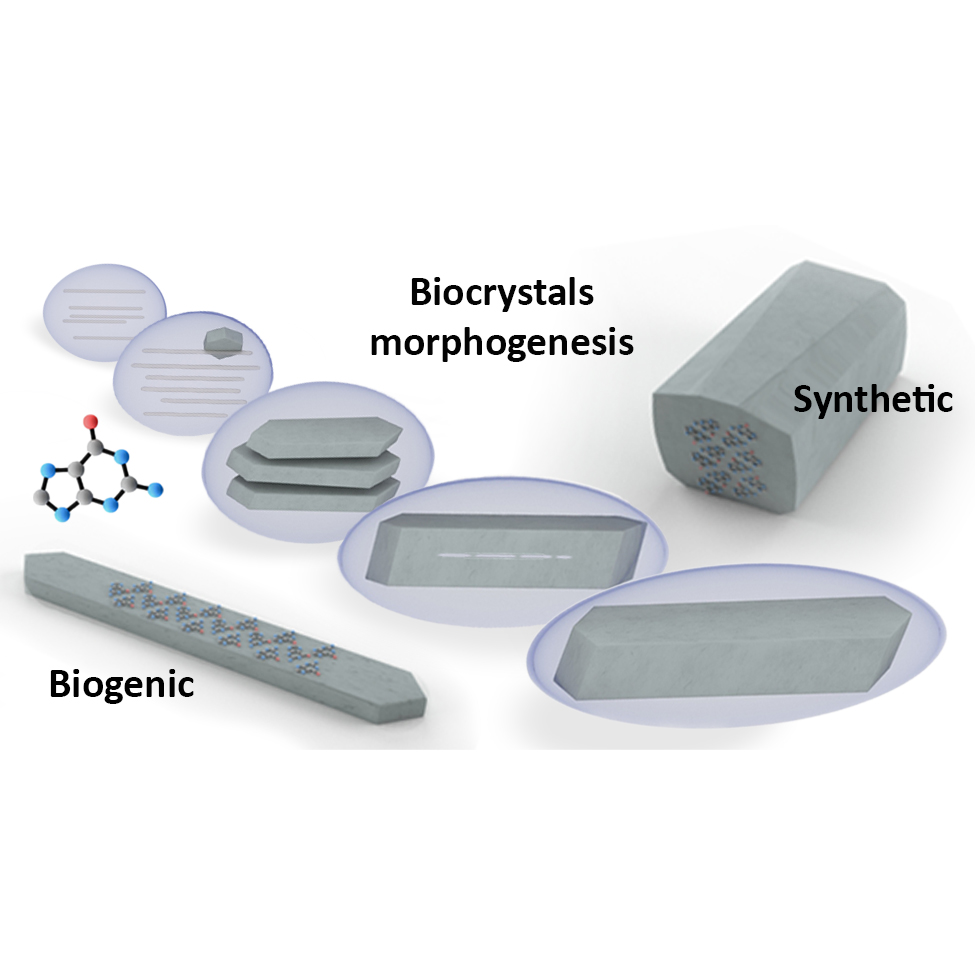

Controlling the morphology of crystalline materials is challenging, as crystals have a strong tendency toward thermodynamically stable structures. Yet, organisms form crystals with distinct morphologies, such as the plate-like guanine crystals produced by many terrestrial and aquatic species for light manipulation. Regulation of crystal morphogenesis was hypothesized to entail physical growth restriction by the surrounding membrane, combined with fine-tuned interactions between organic molecules and the growing crystal. Using cryo-electron tomography of developing zebrafish larvae, we found that guanine crystals form via templated nucleation of thin leaflets on preassembled scaffolds made of 20-nm-thick amyloid fibers. These leaflets then merge and coalesce into a single plate-like crystal. Our findings shed light on the biological regulation of crystal morphogenesis, which determines their optical properties.
