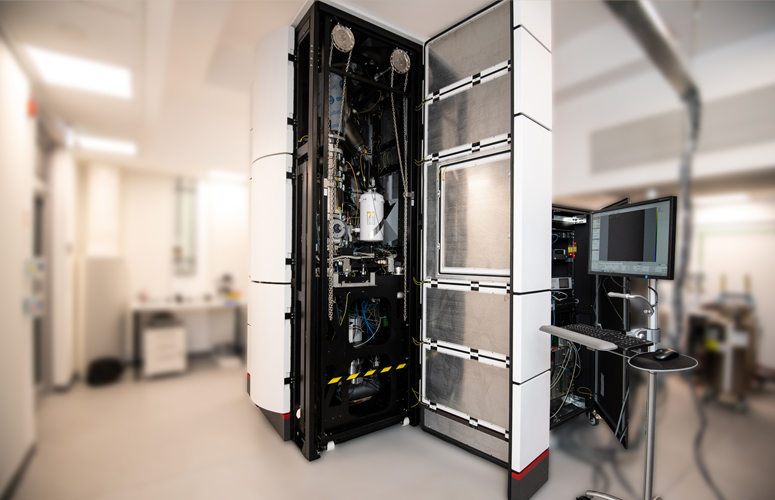

Titan Themis-Z (Thermo fisher Scientific)

Instrument Specification

The Thermo Fisher Scientific Themis Z is an ultra-high resolution, double aberration-corrected, transmission electron microscope for analytical scanning probe and wide-field microscopy delivering ultimate optical performance and flexibility. This high-end analytical (S)TEM is used to answer the most complex questions regarding materials science.

Characteristics & Accessories

  • spatial resolution better than 70 pm
  • system energy resolution obtained is 70 meV
  • high-brightness electron gun
  • Wien-type monochromator
  • Two Rose-Haider double-hexapole aberration correctors (probe and image)
  • Super-X large solid angle X-ray detector for EDS
  • High-performance energy loss spectrometer for EELS and EFTEM
  • OneView high-speed CMOS camera for wide-field TEM imaging and in-situ data recording
  • Multiple STEM detectors for bright-field, annular dark-field, differential phase contrast
  • Four acceleration voltages in TEM and STEM
  • Low voltage operation at 40 kV
  • ornell pixelated STEM detector for 4D-STEM (EMPAD)

Location

Nella and Leon Benoziyo Building for Biological Sciences, Room 054
