Instrument Specification

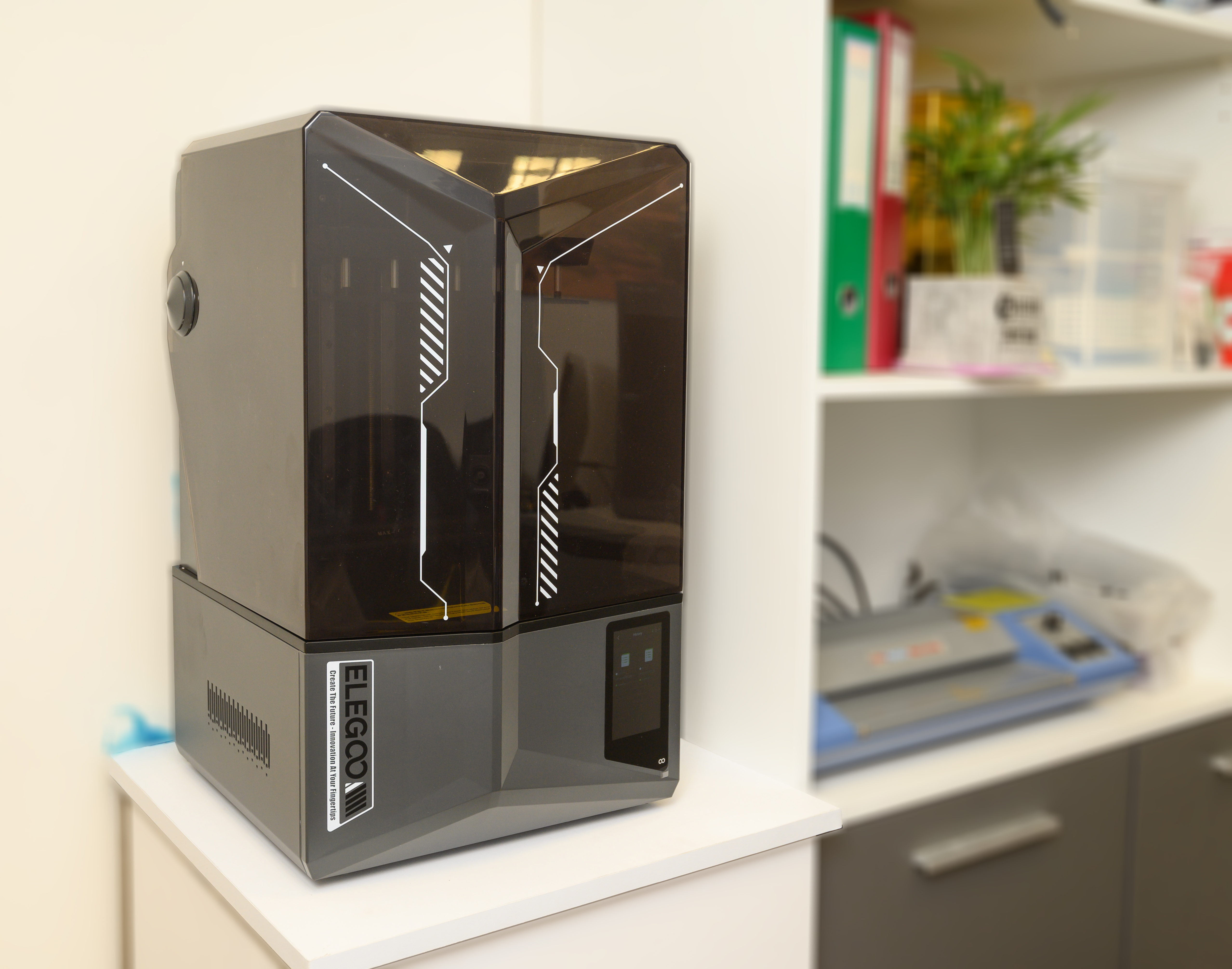

Elegoo Saturn 4 Ultra – High-Speed 12K Resin 3D Printing
The Elegoo Saturn 4 Ultra is a state-of-the-art resin 3D printer designed for professionals, researchers, educators, and advanced hobbyists who require exceptional print quality, speed, and reliability. With a next-generation 12K monochrome LCD and smart automation features, it delivers consistent and accurate results across a wide range of applications.
Specifications:
- Resolution
XY resolution of approximately 19 × 24 µm and Z-axis precision of around 20 µm,
- 12K Monochrome LCD (10”)
Equipped with a 11520 × 5120 resolution screen, the Saturn 4 Ultra produces highly detailed prints with smooth surfaces, making it ideal for prototypes, models, and precision components.
- High-Speed Printing
The advanced tilting release film system enables printing speeds of up to 150 mm/h, significantly reducing print times while maintaining quality.
- Automatic Leveling and Smart Z-Axis Compensation
The printer features a fully automated leveling process and real-time Z-axis adjustments to ensure perfect first layers and consistent results, even during long or complex prints.
- USB Connectivity
Easily send print jobs via use USB for direct access. Compatible with Chitubox and Voxeldance Tango slicing software for flexible workflow integration.
- Efficient Air Filtration
An integrated activated carbon filter helps minimize resin odors, promoting a cleaner and more comfortable working environment.
- Generous Build Volume
With a print volume of 223 × 126 × 220 mm, the Saturn 4 Ultra is well-suited for mid-sized models, batch production, or multi-part assemblies.
Common Use Cases :
- Educational models for classroom or outreach use
- Functional prototypes for lab experiments or devices
- Structural and mechanical parts for student-led projects
- Biological or chemical apparatus components
- Visualization models in physics, neuroscience, or nanotech research
Location
Staff Contacts
-
Assaf Hazzan
Unit Manager
training Information
1.5 to 2 hours of training.
1. Introduction (10–15 min)
- Overview of how resin 3D printing differs from FDM (filament-based) printing
- Main components of the Saturn 4 Ultra: build plate, resin vat, LCD screen, release film system
- General workflow: from slicing to finished print
2. Safety and Lab Protocols (15–20 min)
- Handling of photopolymer resin: gloves, goggles, and skin contact precautions
- Importance of ventilation and use of the built-in carbon filter
- Proper waste disposal of resin and cleaning materials (as per Weizmann’s lab safety guidelines)
- Emergency procedures in case of spills or exposure
3. Printer Setup and Operation (25–30 min)
- Powering on and accessing the touchscreen interface
- Loading the build plate and resin vat correctly
- Filling resin safely and checking the resin level
- Automatic bed leveling process
5. Understanding the Z-axis compensation and tilt mechanism
4. Model Preparation and Slicing (20–30 min)
- Using Chitubox or Voxeldance Tango for slicing models
- Choosing appropriate print settings: layer height, exposure times, supports
- Adding custom supports (important for successful resin prints)
- Exporting and transferring print files via USB or Wi-Fi
5. Print Monitoring and Troubleshooting (10–15 min)
What to check during printing (adhesion, layer separation, resin overflow)
- How to pause, resume, or cancel a print
- Recognizing failed prints and safe removal
6. Post-Processing and Cleanup (20–30 min)
- Removing the print safely from the build plate
- Rinsing and post-curing parts (using IPA and UV curing box if available)
- Cleaning the resin vat and screen with appropriate materials
- Filtering and storing unused resin
- Resetting printer for the next user
